Bifrangi manufacture components for the agricultural, off-highway, marine, power generation and mining sectors. This is achieved via skilled engineers from the design phase to finishing.
- Forging - via 16,000 tonne screw press and soon via 32,000 tonne screw press. - Die and Tool Design - including 3D modelling |
|
- Full Magnetic Particle Inspection |
ForgingForgings are produced using a Weingarten 16,000 tonne screw press capable of forging components up to 2m in length and up to 350Kg in weight. |
||

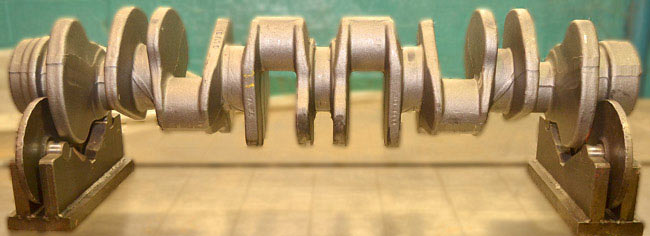

Use of a specialized twisting press offers the capability to twist crankshafts up to 1.4m in length and 200Kg in weight through +/- 120 degrees |
||
True Hot StraighteningThe Company have developed a bespoke method of checking and correcting TIR at forging temperature |
||
Die & Tool DesignDie & Tool design is carried out at Lincoln using state of the art CAD/CAM software. Enhanced capabilities include forging simulation, 3D modelling and full CNC programming |
||

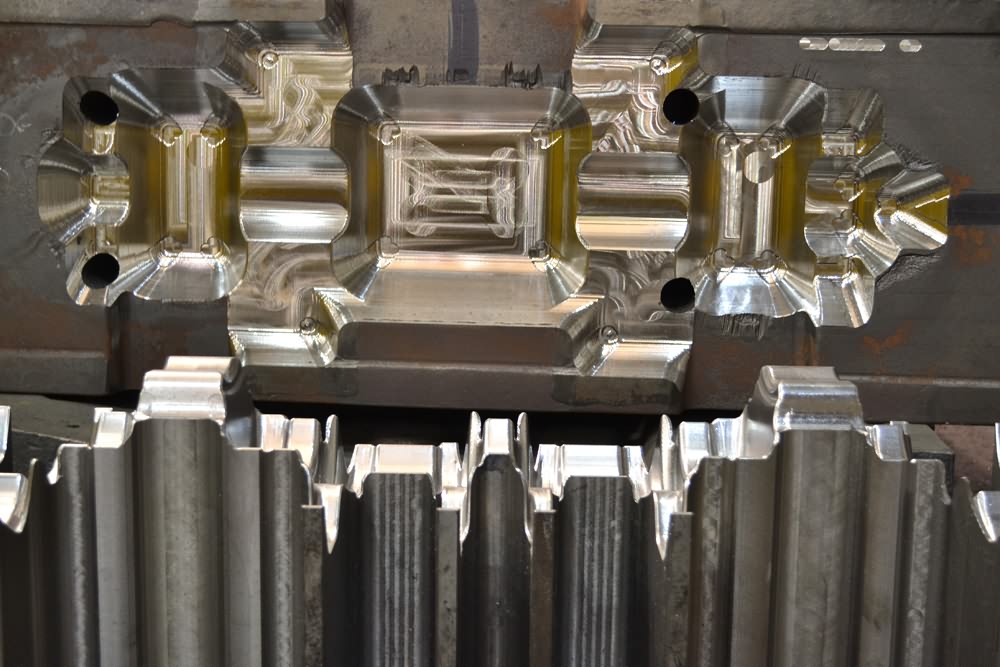

Die ManufacturingAll dies and tools are manufactured in-house using a variety of modern CNC machines including: |
||

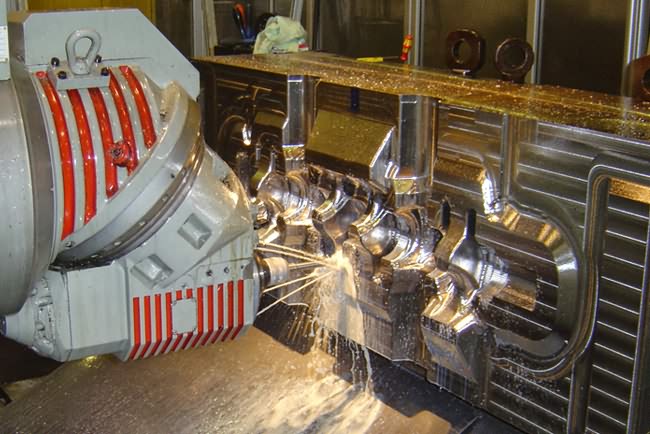

Gantry & Horizontal Milling and MachiningHigh speed 3+2 axis CNC gantry milling machine used for the production of dies and tools up to 9m in length |
||

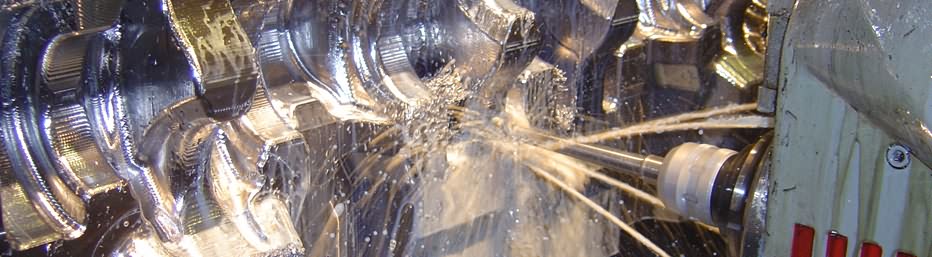

CNC MillingCNC horizontal milling machine used for die preparation. High speed 3+2 axis horizontal milling machine capable of machining die impressions to a finished standard |

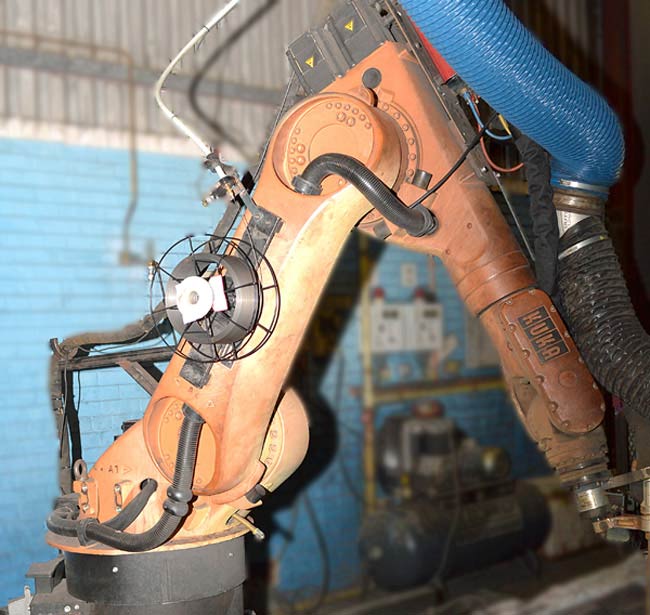

Die RefurbishmentThe company have the capability of refurbishing worn die impressions using two robotic die welding systems |
|
Heat TreatmentFull heat treatment capabilities include a vertical heat treatment facility with polymer, oil and water quench, with variable cycle times as well as traditional batch furnaces |
||

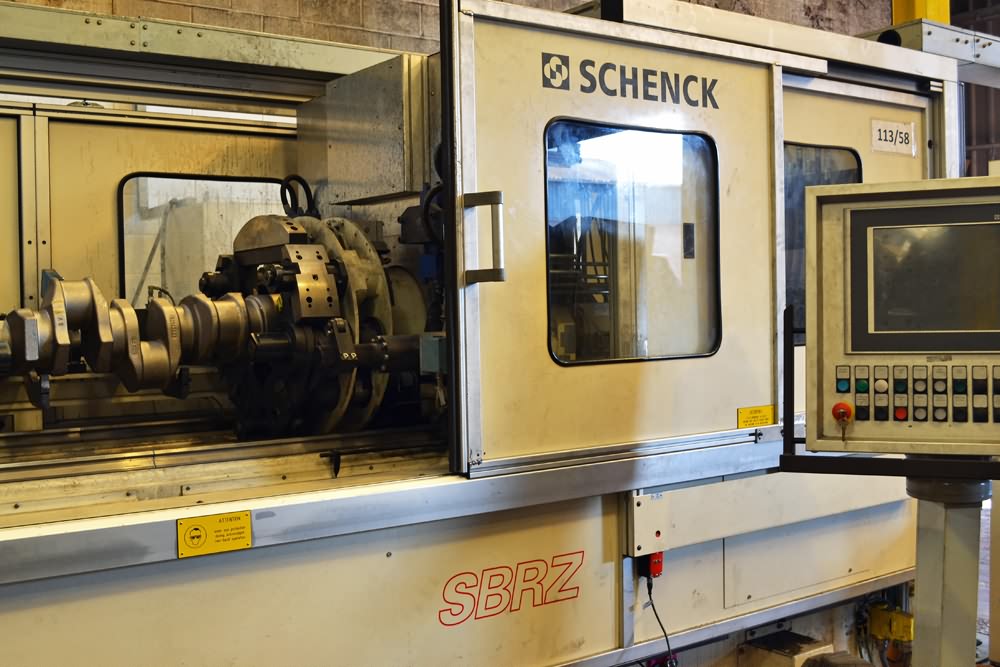

Full Magnetic Particle Inspection & Mass BalancingAll forgings are subject to full magnetic particle inspection, under the supervision of qualified PCN Level 2 operators, before being mass or geometrically centred and packed for world-wide dispatch. |
|
|
Components for the mining industry undergo selective induction hardening to meet customer requirements. |
||
